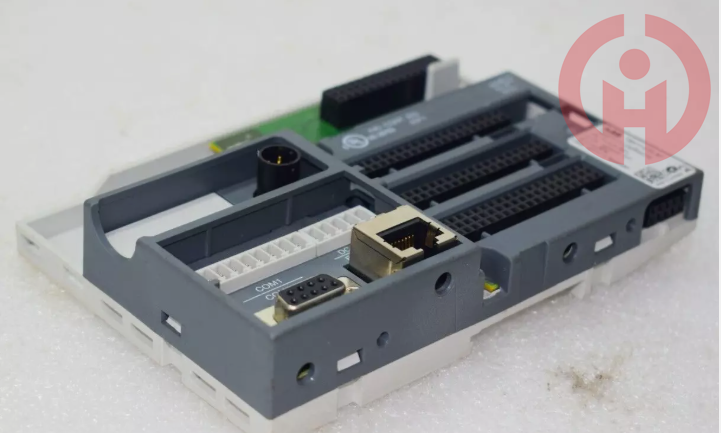

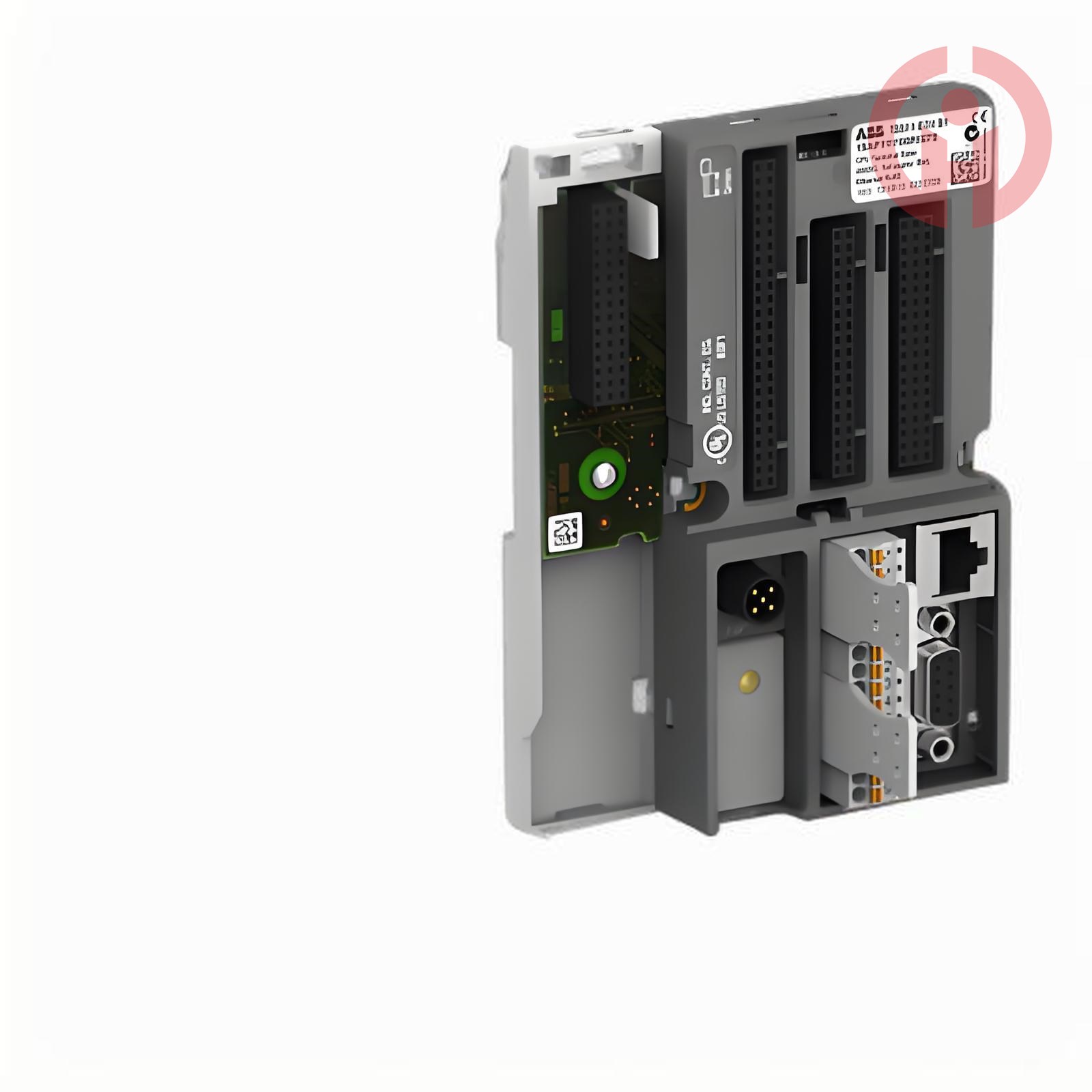

ABBTerminal base
Country of Origin:Sweden (SE)
Brand:ABB
The status monitoring system of AC500 can predict operational performance, optimize asset utilization, improve efficiency and reliability, and reduce service and operating costs through the status monitoring system. The status monitoring system can be integrated into the overall control scheme, supporting monitoring of parameters such as vibration, current, voltage, speed/encoder, etc
Product Introduction
Product Net Weight:
0.159 kg
Product Net Depth / Length:
28 mm
Product Net Height:
135 mm
Product Net Width:
95.5 mm
Gross Weight:
0.215 kg
Package Level 1 Depth / Length:
147 mm
Package Level 1 Height:
40 mm
Package Level 1 Width:
131 mm
Package Level 1 Units:
1 carton
Technical
Function:
For AC500 V2. 1 slot for communication module. Ethernet interface. 2 serial interfaces RS232/RS485
Communication Interface:
D-SUB/RJ45/Terminals
Input Voltage Type:
DC
Degree of Protection:
IP20
Supply Voltage:
24 V DC
Ambient Air Temperature:
Operation 0 ... +60 °C
Storage -40 ... +70 °C
