Product Introduction

High efficiency: It has a high working efficiency in the process of energy conversion, usually exceeding 90%,

which not only reduces energy consumption but also extends the service life of equipment

Stability: High quality components are used to ensure stable operation under different working conditions

greatly reducing equipment failures caused by unstable power supply

Multifunctionality: Supports multiple voltage and current outputs, suitable for various application scenarios

Application scenarios

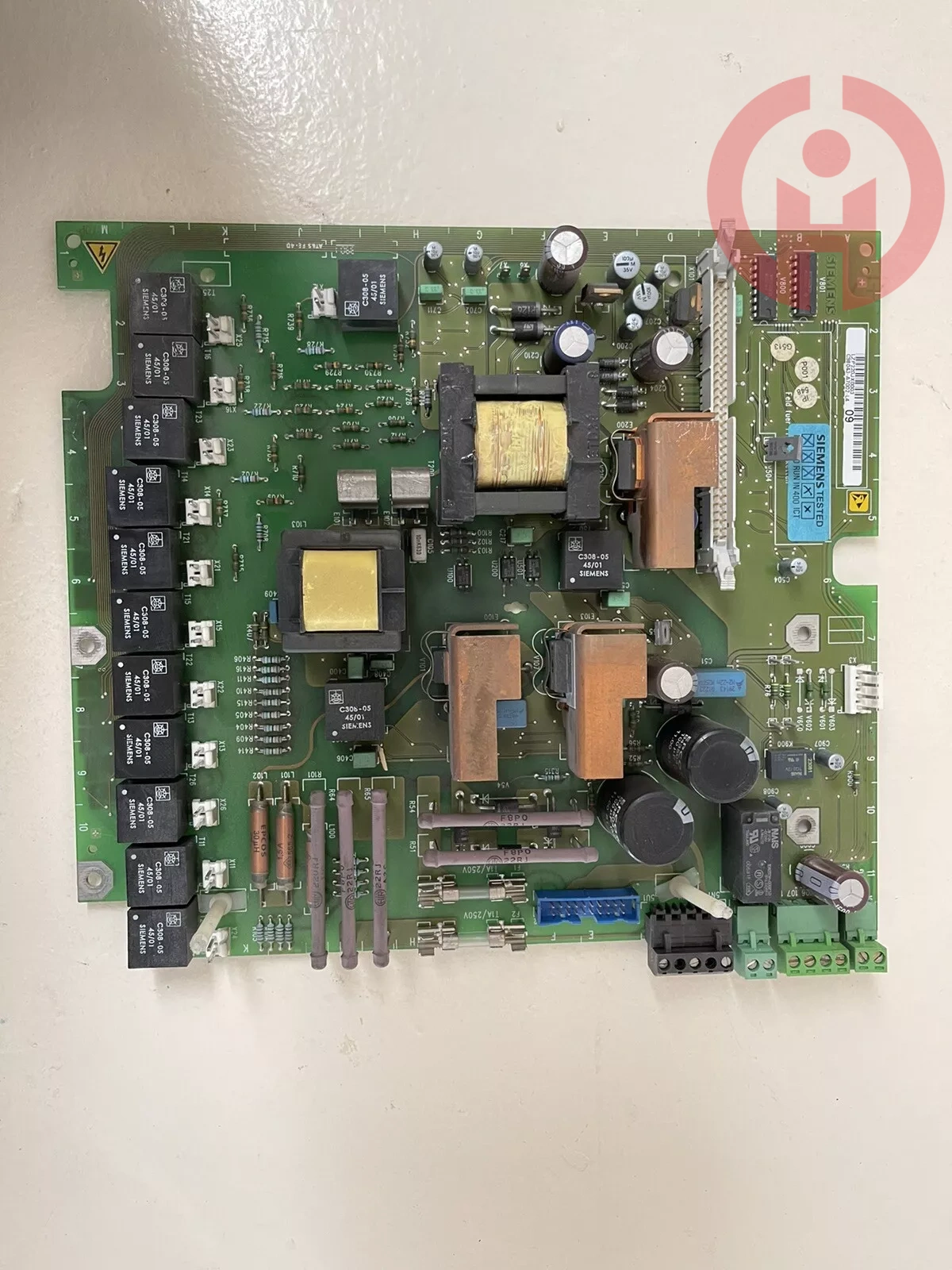

The C98043-A7002-L4 power board is widely used in various industrial equipment, especially in the following

fields:

CNC machine tool

Paper printing

Textile printing and dyeing

Fiber optic cable equipment

Packaging Machinery

Electrical Machinery

Food processing machinery

Rubber Machinery

Biological equipment

Printed circuit board equipment

Experimental equipment

Welding and cutting

Light Industry Machinery

Logistics conveying equipment

Locomotive and Rolling Stock

Medical equipment

Communication equipment

Radar equipment

Satellite ground receiving system

‌

Working principle and speed regulation scheme

The C98043-A7002-L4 power board controls the equipment by adjusting the speed of the DC motor. Its

working principle is as follows:

Power Conversion: Convert AC power into two output DC power sources, one supplying the excitation

stator of the DC motor and the other supplying the armature of the DC motor

Feedback regulation: Adjust the speed of a DC motor by controlling the armature DC voltage. The DC motor

provides feedback current to the speed controller, which determines the motor speed based on the feedback

current and adjusts the armature voltage output if necessary to regulate the motor speed

Speed regulation scheme: Common speed regulation schemes include changing the armature voltage

changing the excitation winding voltage, and changing the armature circuit resistance. Among them, the

most commonly used is the voltage and speed regulation system
